4D Scheduling

Scheduling data is typically imported from a project management tool like Primavera P6, Microsoft Project, or similar software into the 4D BIM environment. This data is then linked to specific elements in the 3D model, allowing construction tasks to be visualized over time. The process involves mapping the schedule activities to corresponding 3D elements within the model.

Common file formats used in 4D BIM workflows include IFC (Industry Foundation Classes), DWG (AutoCAD drawing files), NWD (Navisworks), and RVT (Revit). Scheduling data is often brought in via formats like XER (Primavera), MPX (Microsoft Project), or CSV files to link time elements to the 3D models.

4D BIM identifies time-based clashes by visualizing when different construction elements overlap in time during the building process. For example, if two tasks are scheduled to occur in the same physical space simultaneously, the 4D model will highlight this conflict, allowing project teams to adjust the schedule or sequence of activities to prevent delays.

4D BIM can be extended to 5D and 6D BIM by integrating cost and sustainability data, respectively. In 5D BIM, the scheduling data (time) is linked with cost information, enabling real-time tracking of both budget and timeline. For 6D BIM, sustainability parameters (such as energy usage or lifecycle analysis) are incorporated, allowing for analysis of the project's environmental impact over time.

Common software for 4D BIM modeling includes Autodesk Navisworks, Synchro PRO, Bentley ProjectWise, and Vico Office. These tools allow for the integration of scheduling data with 3D models and provide functionalities for construction sequencing, clash detection, and project visualization.

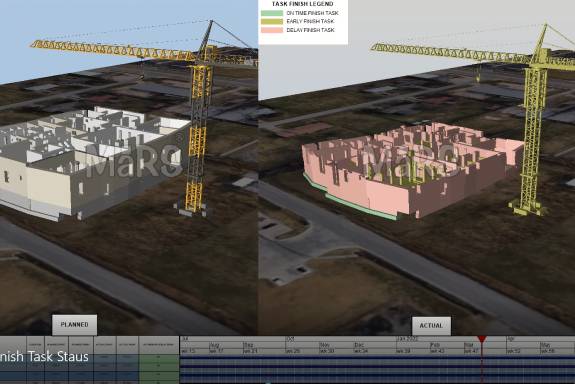

The process involves associating individual elements of the 3D model (such as walls, floors, or structural components) with specific tasks in the project schedule. This is usually done by matching the activity IDs or names from scheduling software (e.g., Primavera or MS Project) with the corresponding components in the 3D BIM model. Once linked, the schedule can be visualized in a time-lapse manner.

The Work Breakdown Structure (WBS) is crucial in organizing and linking the schedule with the 3D model. It breaks down the project into manageable sections, making it easier to assign time-based tasks to specific elements of the 3D model. Each WBS element corresponds to a construction activity, facilitating easier linking between the schedule and model components in 4D BIM.

4D BIM models are dynamic and can be updated as the project schedule evolves. When changes occur in the scheduling software, such as task duration updates or re-sequencing, these changes can be imported back into the 4D BIM model. The updated schedule is then reflected in the model, allowing project teams to assess the impact of these changes on the construction sequence.

In 4D BIM, clash detection is not only spatial but also temporal. While 3D BIM focuses on identifying physical clashes between components, 4D BIM checks whether construction tasks overlap in time and space. For instance, two subcontractors might be scheduled to work in the same area simultaneously, which is flagged as a time-based clash in 4D BIM. This enables better scheduling adjustments to avoid such conflicts.

Yes, 4D BIM is particularly useful for complex, multi-phase projects as it allows the visualization of different construction stages over time. For large projects with multiple construction phases, 4D BIM helps manage overlapping activities, prioritize tasks, and optimize the sequence of construction, ensuring a smooth transition between phases.
